Project Rescue: Taking Over a Complex Pocket Lift and Slide Door System
— Luvindow Engineering Team
Project Snapshot
Taking Over a Project Stalled by Permitting Failure

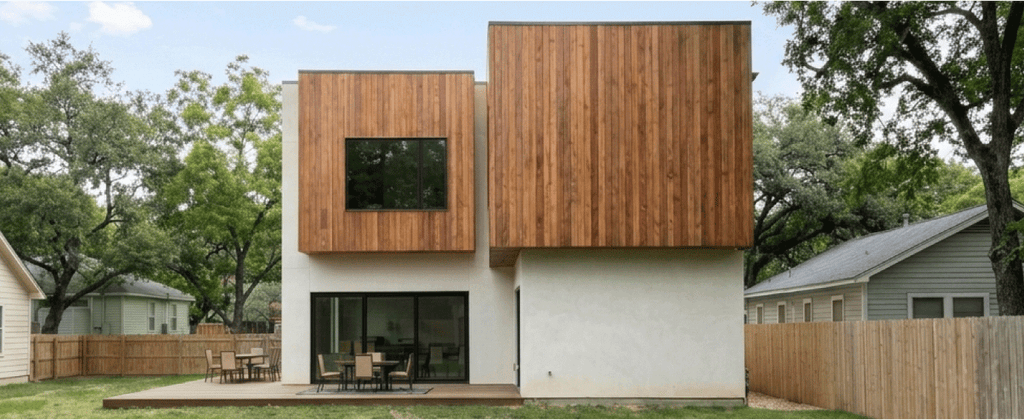

In a 1980s Los Angeles residential remodel, the whole-house window and door upgrade was nearing completion with all other units successfully installed.
The project stalled when the final pocket door system failed to meet permitting requirements. Facing a pre-framed wall cavity and an imminent drywall schedule, the builder engaged Luvindow to engineer a compliant solution within the existing constraints.

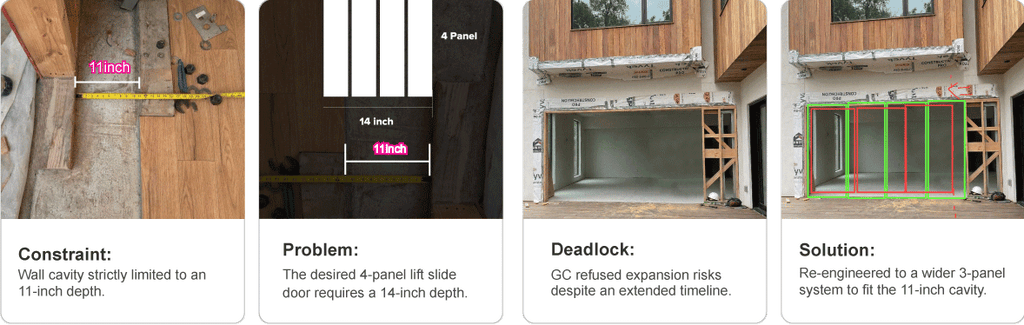

Navigating the 11-Inch Rough Framing Constraint
The original wall was framed with an 11-inch depth to perfectly accommodate the previous door.
While exceeding all local codes, the extra depth supports high-performance configurations:thermally broken frames, wider insulated glass, and optimized structural design for maximum energy efficiency and durability.
To accommodate both constraints without a costly wall rebuild or altering core specifications, Luvindow proposed a structural reconfiguration: changing the 4-panel system into a 3-panel layout by proportionally increasing individual panel widths.
Engineering Data Over Sales Pitches
Trading Depth for Width to reach 11 inches
Removing one track reduced the system's stacked depth to under 11 inches, preserving the heavy-duty profile structure without altering the original wall depth. While wider panels require a horizontally longer hidden pocket, extending framing laterally is structurally less invasive than rebuilding an entire wall's depth longitudinally. The general contractor approved the revision.
Ensuring Stability with <25% Hardware Load
However, this structural pivot triggered a perfectly reasonable concern from the homeowner. Fewer panels meant each piece of glass became significantly wider and heavier. “Will this increased weight overload the rollers and internal tracks? Will it become impossible to slide in 10 years?”
Combating UV Exposure via Dual-Color Finish
With the structural math locked in, we initiated a second technical review focusing on finish and weatherability.To maintain visual flow, the client initially requested a dark wood-grain transfer finish to match the rest of the home. However, our site data confirmed the opening faced directly West. During a Southern California summer, a West-facing elevation absorbs brutal ultraviolet (UV) radiation and severe thermal loads. While modern wood-grain transfers have excellent adhesion, prolonged exposure to harsh, unshaded sun inevitably accelerates fading compared to industrial-grade solid powder coatings.
To ensure long-term facade integrity, we recommended a Dual-Color finish for a truly weather-resistant sliding door:
Exterior: A high-weather-resistant black AkzoNobel powder coating to combat severe UV aging and match the architectural exterior.
Interior: The client's preferred dark wood-grain transfer finish, seamlessly integrating with the indoor hardwood floors.
Upon reviewing the weatherability analysis, the client quickly approved the pivot, securing the perfect balance between their aesthetic vision and engineering lifespan.
Accelerating Installation via Modular Packing
Ultimately, the project was completed ahead of schedule.The builder noted that our modular packaging significantly improved site efficiency.Because every part was clearly categorized, labeled, and packaged according to sequential installation steps, on-site sorting was eliminated. This drastically boosted installation speed .The general contractor established a long-term partnership with us, and noting:
True Customization is Upholding Excellence Within Harsh Boundaries
Whether you are engineering a new architectural build or navigating the rigid constraints of a remodel, Luvindow applies rigorous physics and materials science to solve real on-site pain points.
